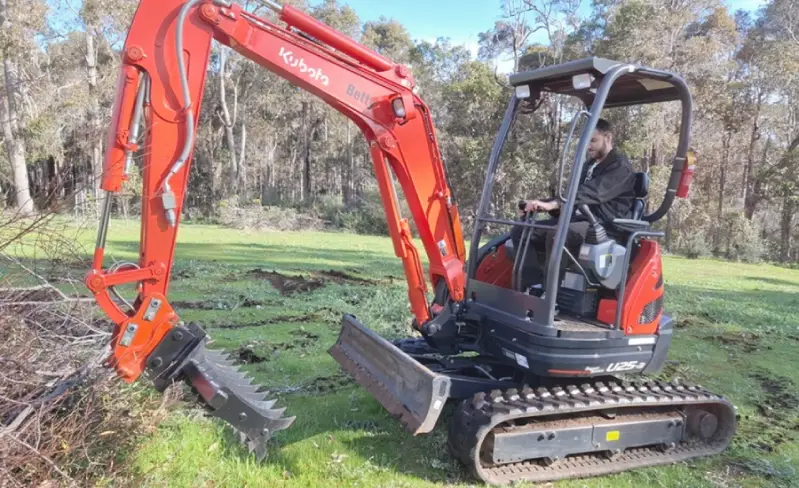

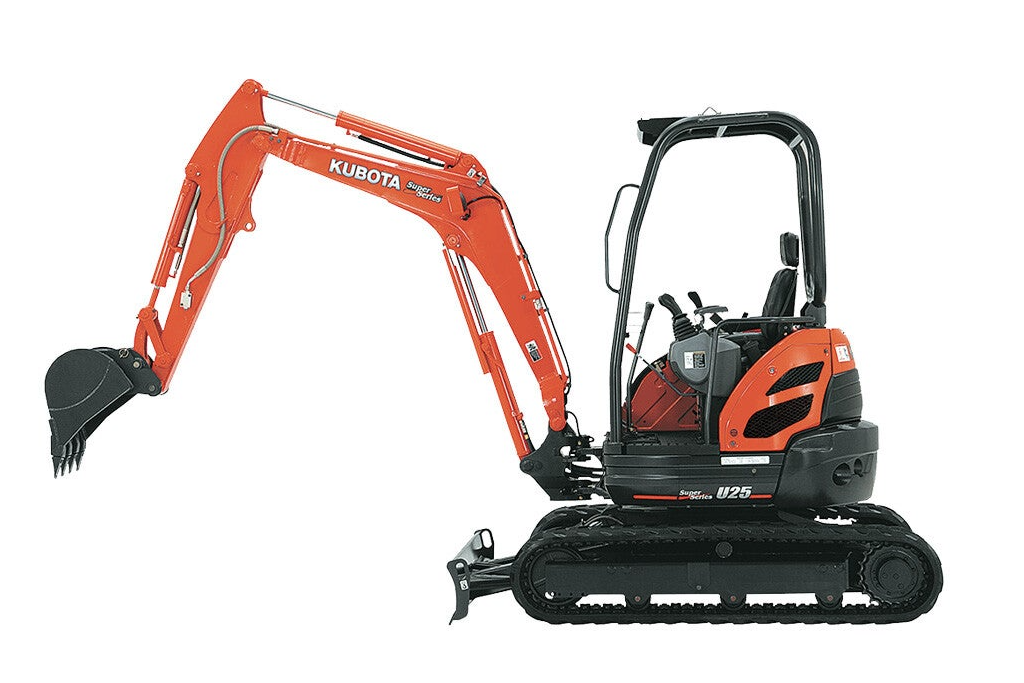

Kubota U25-3S Zero-Swing Excavator
"Betty"
A compact 2.5 tonne zero-swing excavator with hydraulic quick hitch and hydraulic couplings, making attachment changes quick and convenient.
Features:
- Hydraulic quick hitch
- Hydraulic auxiliary couplings
- Battery isolator
- Emergency stop
- Two-way radio
- Flashing beacon
- Fire extinguisher
- 300mm, 450mm and 1,200mm bucket kit
| Specifications | |
|---|---|
| Model | U25-3S |
| Operating weight | 2,545 kg |
| Engine | Kubota diesel |
| Engine output | 19.8 HP (14.8 kW) @ 2,400 rpm |
| Fuel type | Diesel |
| Hydraulic flow rate | 46 L/min |
| Travel speed | 2.5 / 4.5 km/h |
| Max. digging depth | 2,810 mm |
| Max. digging radius | 4,770 mm |
| Max. digging height | 4,530 mm |
| Max. dumping height | 3,210 mm |
| Overall length | 4,150 mm |
| Overall width | 1,500 mm |
| Overall height | 2,420 mm |
| Min. Ground Clearance | 285 mm |
